Zon, Taking Bass Further

Specifications

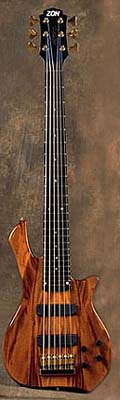

Legacy Elite - Legacy Elite 6

Build Your Legacy Elite

Body
Material: Two-piece select mahogany core with master-grade figured top
Finish: Flat satin (gloss available at extra charge)
Color: Natural

Neck
Type: Composite, set-in design
Scale length: 34"
Finish: Polyester gloss
Fingerboard: Phenowood w/side dot markers and abalone face dots
Radius: 12"
Nut: Graphite
Frets/size: 24/medium
Width at nut: 2.125"
Width at 24th fret: 3.250"

Electronics
Type: ZP-2DM active system made for Zon by Polyfusion
Functions: Master volume, pickup blend, bass, treble and midrange controls Boost/cut ±15dB
Power requirements: Single 9-volt battery
Life expectancy: 300 hours of continuous use

Pickup
Make: Exclusively designed for Zon by Bartolini
Type: Neck: wide-aperture, passive, dual coil design Soapbar-style shell
Bridge: wide-aperture, passive, dual-coil design Soapbar-style shell

Hardware
Bridge: ZON machined brass
String spacIng .656"/16.5mm (string-to-string center)
Tuners: Gotoh GB-7

Options
General: • Fretless -lined, blank or half lined. (no dots on board face). • Bookmatched exotic wood tops • Matching headstock • Transparent colors • Solid colors • Piezo bridge • Black hardware • Gold hardware • Hipshot x-tender. • Left-handed

Next Model...Legacy Elite Special 4 >>

Legacy Elite 4 / 5 / 6 •• Legacy Elite Special 4 / 5 / 6
